Advanced MPPT Performance (99% Tracking Efficiency)
The LiTime 60A MPPT Solar Charge Controller uses advanced Maximum Power Point Tracking (MPPT) technology to continuously optimize energy harvest from your solar array. With a tracking efficiency of ≥99% and peak conversion efficiency of up to 97%, it ensures your system captures and delivers maximum available solar power to your batteries.
Built-In Bluetooth Monitoring
Equipped with an integrated Bluetooth module, this 12V / 24V / 36V / 48V MPPT controller allows for wireless monitoring and control—no external Bluetooth accessory required. Easily view real-time system data and adjust settings through the LiTime App.
👉 Visit the LiTime App Download page for Bluetooth access.
LCD Display & LED Status Indicators
A built-in LCD screen provides clear visibility into system operation, while four intuitive buttons make menu navigation simple. Multiple LED indicators display the real-time status of the solar array, battery, load output, and controller operation at a glance.
Robust Thermal Design & Comprehensive Protection
Housed in a durable die-cast aluminum enclosure, the LiTime MPPT controller delivers excellent heat dissipation to minimize power loss and maintain stable operation. Integrated protection features safeguard your system against reverse polarity, overpower, overvoltage, short circuits, and over-temperature conditions.
Wide Battery Compatibility
Designed for versatility, this controller supports Sealed, Gel, and Lead-Acid batteries through adjustable charging parameters. It also includes a dedicated LiFePO4 charging mode, making it an ideal solution for modern lithium battery systems.
Enhanced Installation Components
Included copper wire connectors increase the contact area between wiring and terminals, improving current transfer efficiency and ensuring a secure, reliable installation.

Default Battery Setting：                                      12V LI (Lithium Iron Phosphate) Battery
System Voltage：                                                     12V/24V/36V/48V
Rated Charging Current：                                    60A
Rated Load Current：                                             20A

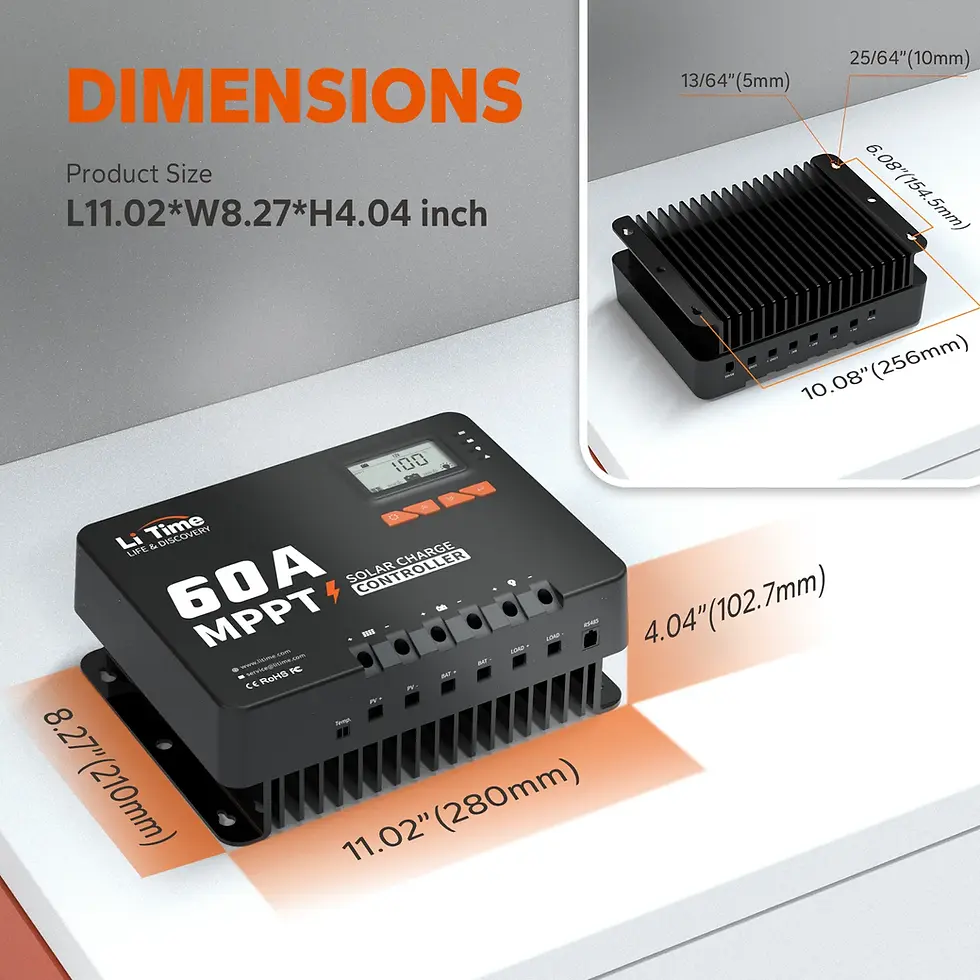

Size：                                                                             11.02*8.27*4.04 inch
Weight：                                                                      10.03 lbs (4.55kg)



Max. Solar Panel System Input Power：          900W for 12V/1800W for 24V/ 2600W for 36V/3200W                                                                                                for 48V
Max. Solar Input Voltage：                                    150V
No-Load Loss：                                                           12mA at 12V/10mA at 24V/6mA at36V6mA at 48V
Battery Voltage：                                                       9V - 64V
Max. Power Point Voltage Range：                     Battery Voltage+3V to 120V
