We like this battery because

-LiTime 200A BMS, Stronger Flow Capacity
-Max 200A Continuous Dis/Charge Current, 400A(5S) of High Discharge Current
-2560Wh Energy, 2560W Continuous Output Power
-EV Grade-A Cells, 4000+ cycles @100%DOD
-Max 40.96kWh Energy (4P4S)
-High-temp Cut-off Protection
-48 lbs,



SPECS         BATTERY

Cell Type:                              LiFePO4 Prismatic

Warranty:                                 5 Years

Cycle Life:                            4000 cycles at 100% DOD, 6000                                                               cycles at 80% DOD,15,000 cycles

                                                     at 60% DOD

Nominal Voltage:              12.8V

Rated Capacity:                 200Ah

Energy:                                  2560Wh

Internal Resistance:          ≤40mΩ

Certifications:                     UL, FCC, CE, RoHS, UN38.3



                BMS

BMS:                                                                  200A

Max. Continuous Output Power:           2560W

Max. Continuous Charge Current:        200A

Max. Continuous Discharge Current:  200A

Max. Discharge Current 5 Seconds:    400A

Max. Discharge Current 1 Second:       600A



             CHARGE

Charge Method:                                          CC/CV

Charge Voltage:                                          14.4V ± 0.2V

Recommend Charge Current:               40A (0.2C)



           TEMPERATURE

Charge Temperature:                   0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature:           -20℃ to 60℃ / -4℉ to 140℉

Storage Temperature:               -10℃ to 50℃ / 14℉ to 122℉



          OTHERS

Terminals:                                           M8 bolts

Weight Approx.:                              45.59 lbs

Size:                                                     L21*W8.2*H 8.5 inch

Housing Material:                          ABS

Protection Class:                            IP65

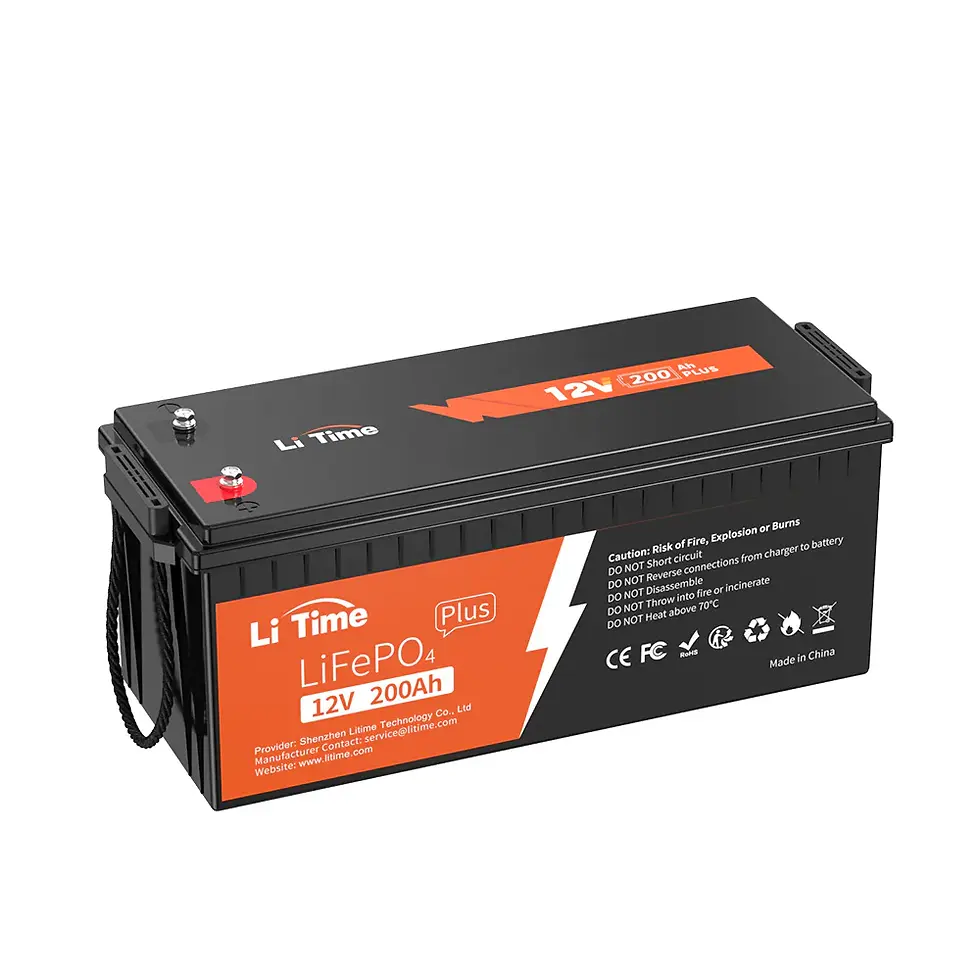

LiTime 12V 200Ah Plus LiFePO4 Lithium Battery - 200A BMS

$819.99 Regular Price
$499.99Sale Price
Quantity
